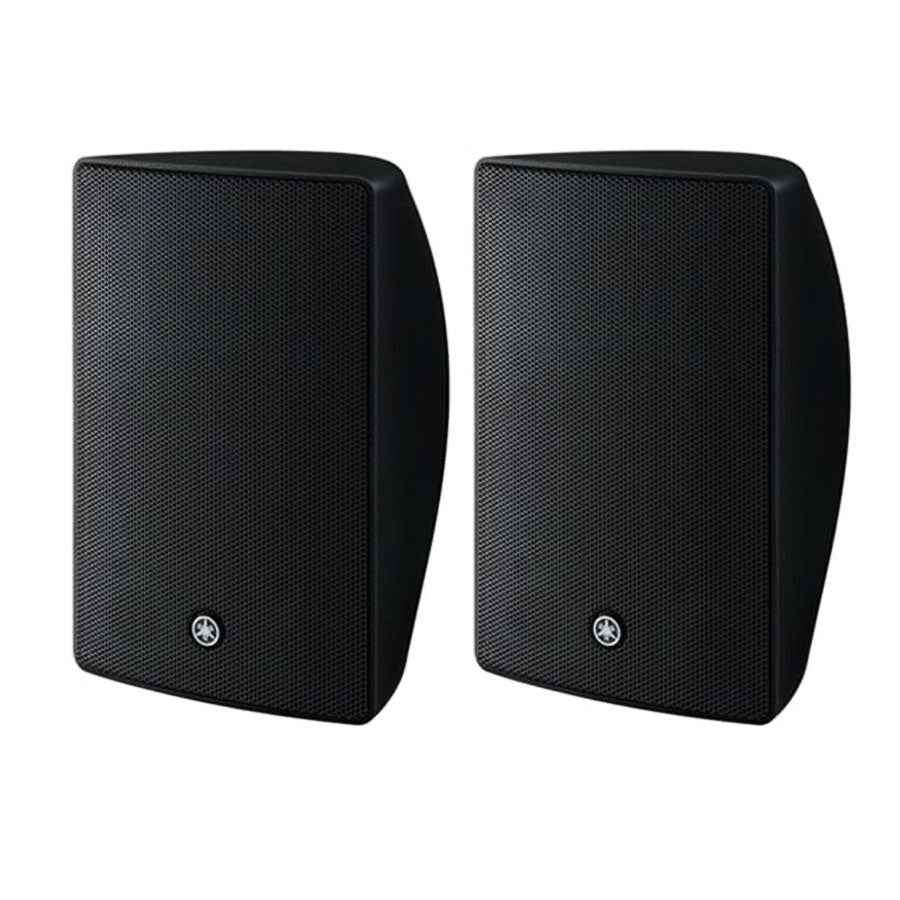

Yamaha VXS5

Surface Mount Speaker

5.25" cone woofer with a 0.75" soft dome tweeter.

Highly adaptable surface mount speakers

Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction—effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille of both series' speakers that actually improves sound clarity by raising the aperture ratio. Similarly, the smooth curves of the surface-mount cabinet's simple yet sophisticated design allow the speakers to be mounted closely to the wall—while still fully capable of panning and tilting to target service areas. Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.

• Speaker type: 2-way, Bass-reflex
• Frequency range (-10dB): 62Hz - 20kHz

Nominal coverage

• H: 120°
• V: 120°

Components

• LF: 5.25" Cone
• HF: 0.75" Soft dome

Crossover: 3kHz

Power rating

• NOISE: 75W
• PGM: 150W

Nominal impedance: 8Ω

Transformer taps

• 100V: 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
• 70V: 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)

SPL

• Sensitivity (1W; 1m on axis): 89dB SPL
• Peak (Calculated): 114dB SPL

I/O connectors: 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)

• Shape: Rectangular
• Cabinet material: ABS
• Finish: VXS5:Black

Waterproof: IP35

Dimensions

• W: 176mm (6.9")
• H: 280mm (11.0")
• D: 163mm (6.4")
