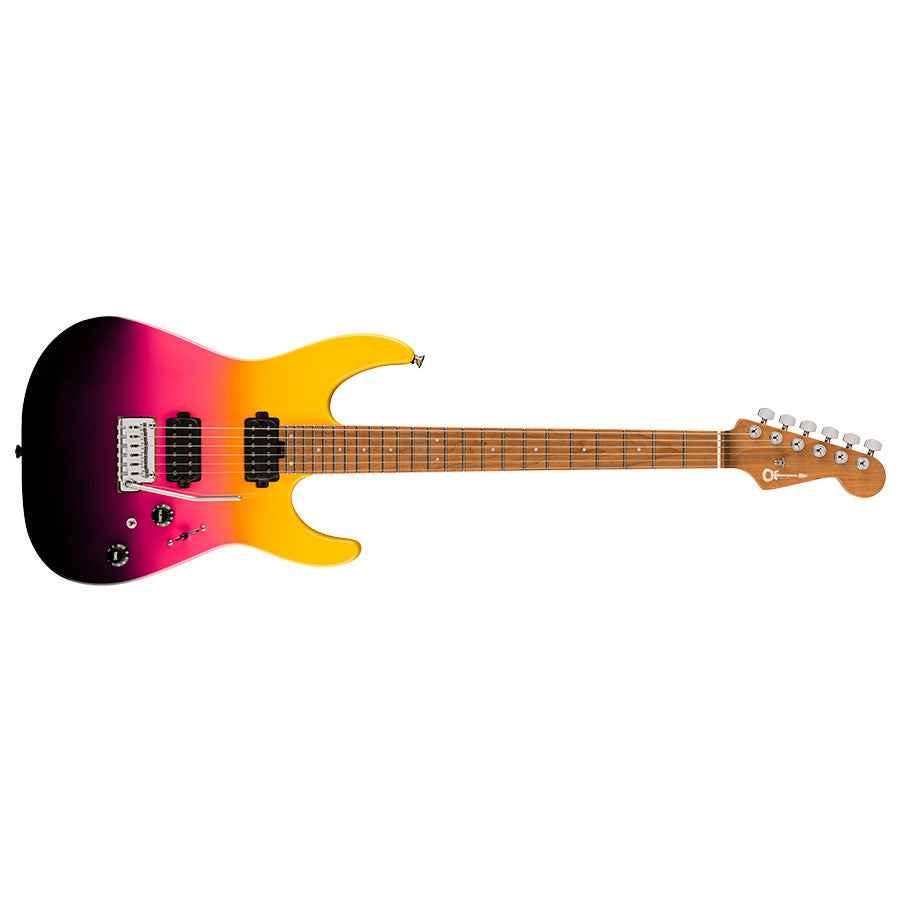

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.

GENERAL

• Model Number    2962411500
• Series    Pro-Mod
• Color    Malibu Sunset
• Number of Strings    6
• Orientation    Right-Hand

BODY

• Body Finish    Gloss
• Body Shape    Dinky®
• Body Material    Alder

NECK

• Neck Material    Caramelized Maple
• Neck Construction    Bolt-On with Graphite Reinforcement
• Neck Finish    Hand-Rubbed Urethane
• Neck Shape    Speed Neck with Rolled Fingerboard Edges
• Neck Binding    None - Rolled Fingerboard Edges
• Scale Length    25.5" (64.77 cm)
• Fingerboard Radius    12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material    Caramelized Maple
• Number of Frets    24
• Fret Size    Jumbo
• Nut Material    Graph Tech TUSQ XL
• Nut Width    1.6875" (42.86 mm)
• Position Inlays    4mm Pearloid Dot
• Side Dots    Luminlay®
• Truss Rod Nut    Heel-Mount Truss Rod Adjustment Wheel
• String Trees    Fender® Standard String Guide

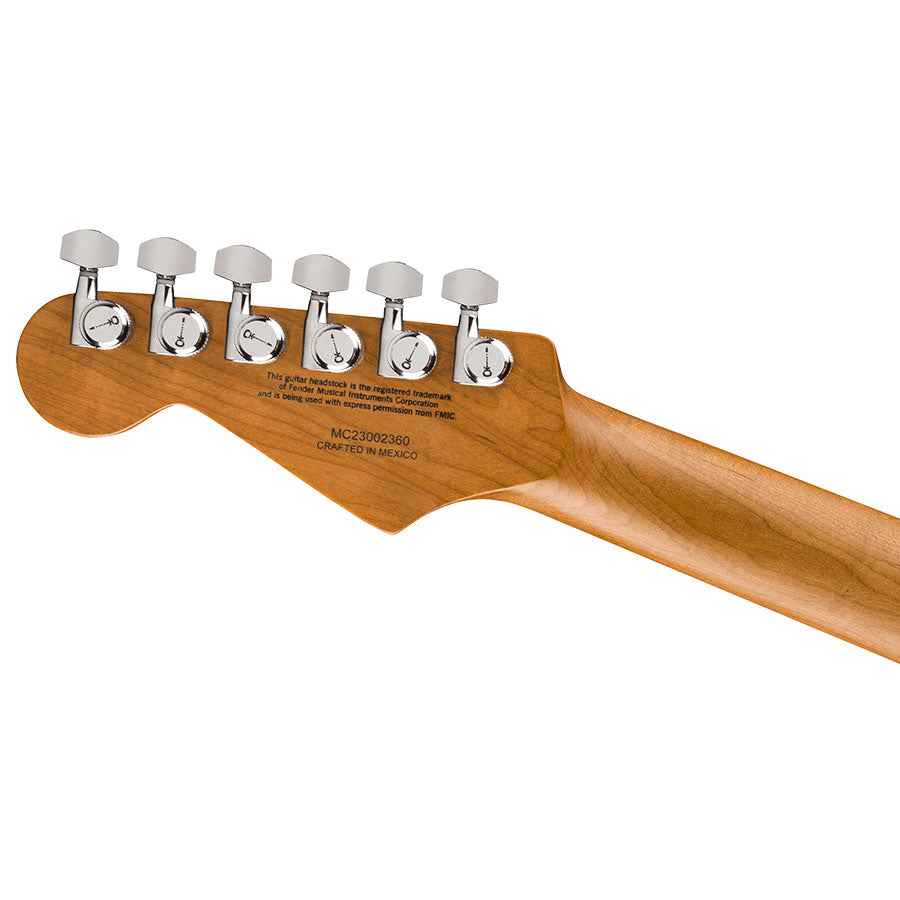

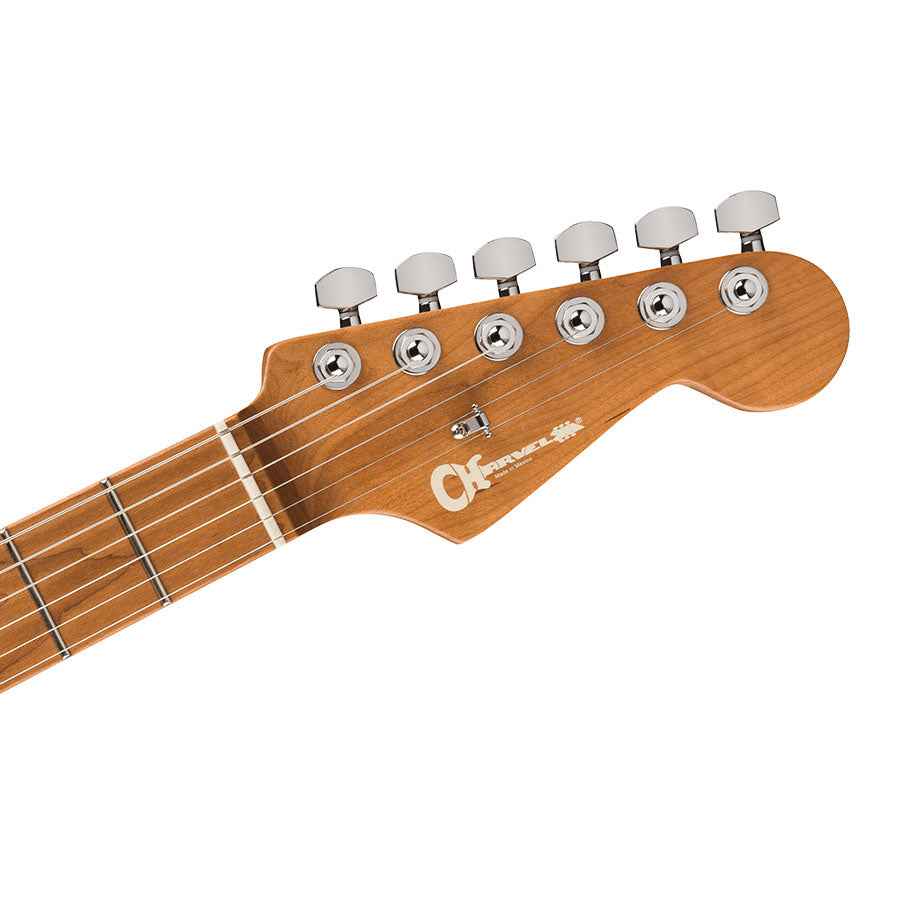

• Headstock    Licensed Fender® Stratocaster®
• Neck Plate    None - 4-Bolt Sculpted Heel

ELECTRONICS

• Bridge Pickup    Seymour Duncan® Full Shred™ TB-10
• Neck Pickup    Seymour Duncan® Alnico II Pro™ APH-1N
• Pickup Color    Black
• Controls    Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
• Pickup Switching    5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
• Auxiliary Switching    2-Position Mini Toggle Down/All Series, Up/All Parallel
• Pickup Configuration    HH

HARDWARE

• Bridge    Gotoh® Custom 510 Tremolo
• Hardware Finish    Chrome
• Tremolo Arm    Gotoh®
• Tuning Machines    Charvel®-Branded Die-Cast Locking
• Pickguard    None
• Control Knobs    Strat®-Style Skirt
• Switch Tip    Black
• Saddle Height Wrench    Yes
