Overview

The DBR15 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.

FEATURES

2-way, Bi-amp powered speaker, Bass-reflex type
50Hz – 20kHz Frequency range (-10dB)
2.1kHz: FIR-X tuning™ (linear phase FIR filter) Crossover
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) Output power
132dB SPL Maximum output level (1m; on axis)
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) I/O connectors
D-CONTOUR: FOH/MAIN, MONITOR, OFF Processors
Fan cooling, 4 speeds Heat dissipation
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz Power requirements
74W(1/8 Power Consumption), 18W(Idle) Power consumption
Plastic Cabinet material
Black Finish
Side x 2 Handle
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) Flying and mounting hardware
35mm (Bottom x 1) Pole socket

Specifications

Powered	Yes
Power Configuration	Bi-amped
LF Driver Size	15" woofer
HF Driver Size	1.4"
LF Driver Power Amp	800W
HF Driver Power Amp	200W
Total Power	1000W
Inputs	2 x XLR-1/4" combo, 1 x Dual RCA Stereo
Outputs	1 x XLR
Frequency Range	50Hz-20kHz (-10dB)
Crossover Frequency	2.1kHz
Maximum Peak SPL	132dB
Horizontal Coverage Angle	90 Degrees
Vertical Coverage Angle	60 Degrees
Enclosure Material	Plastic
Mounting Options	Pole Mount with 1.37" socket, Floor Wedge, 3 x M8 Fly Points
Power Source	Standard IEC AC cable

Payment & Security

All transactions are securely processed through Razorpay Magic Checkout. Your payment details are never stored.

Save 27%

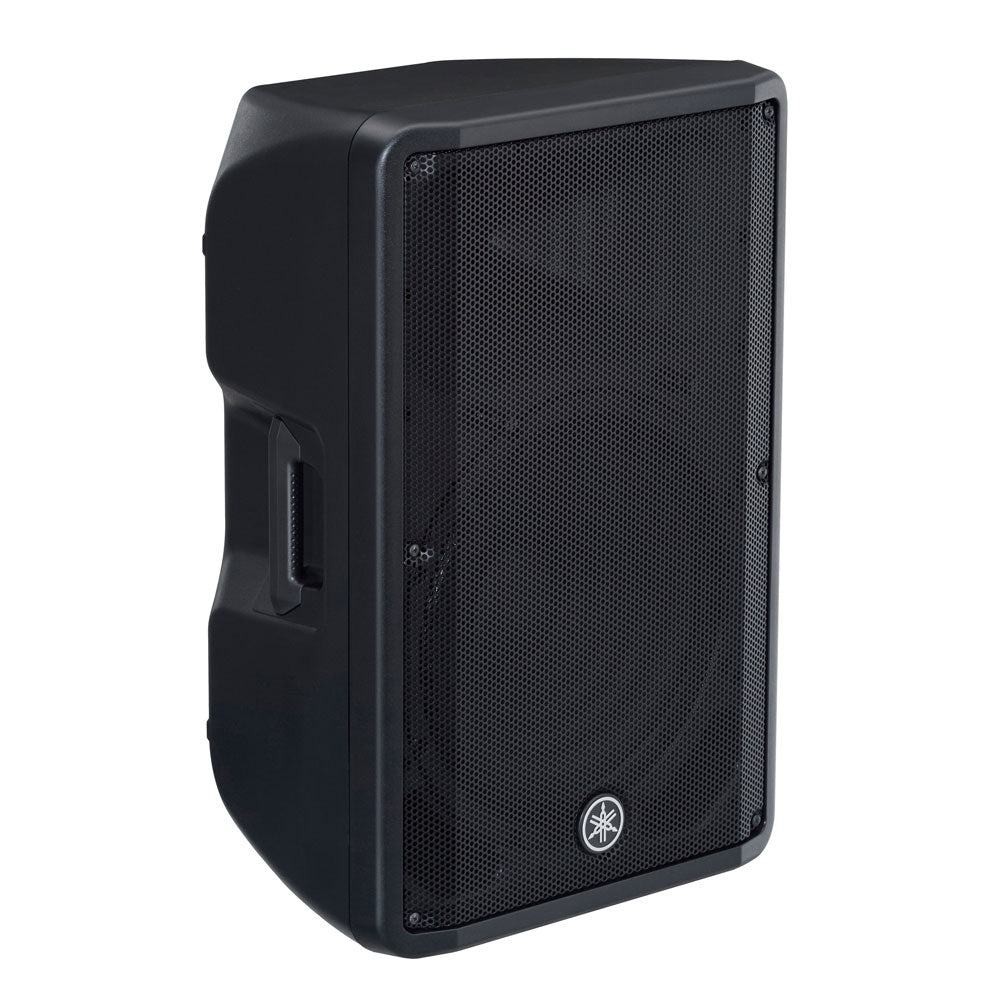

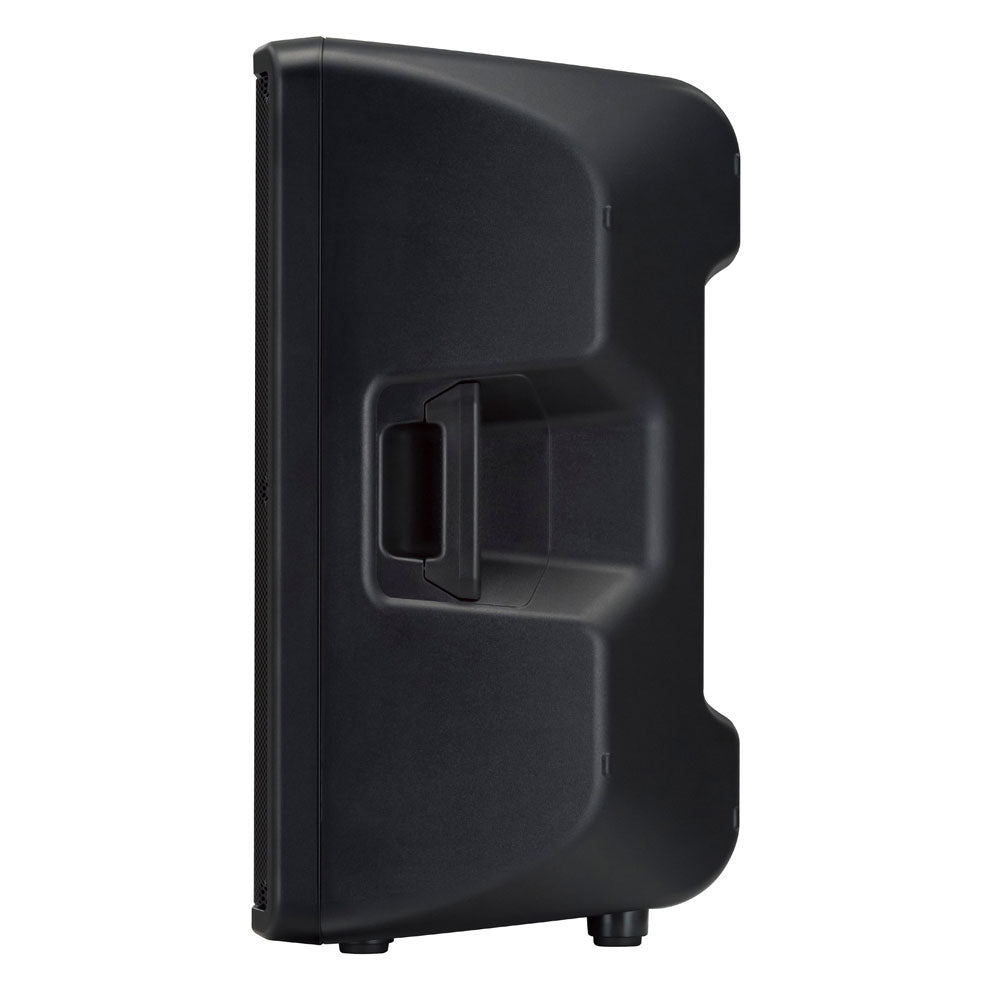

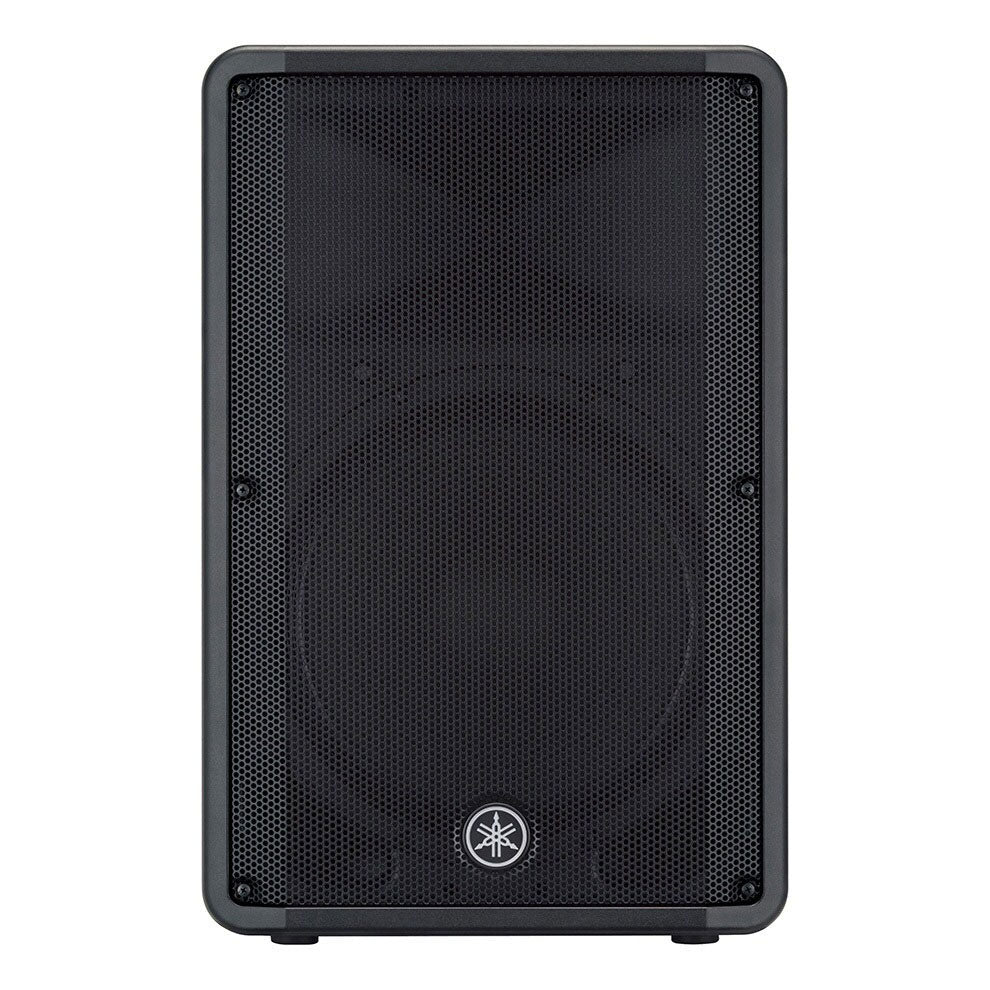

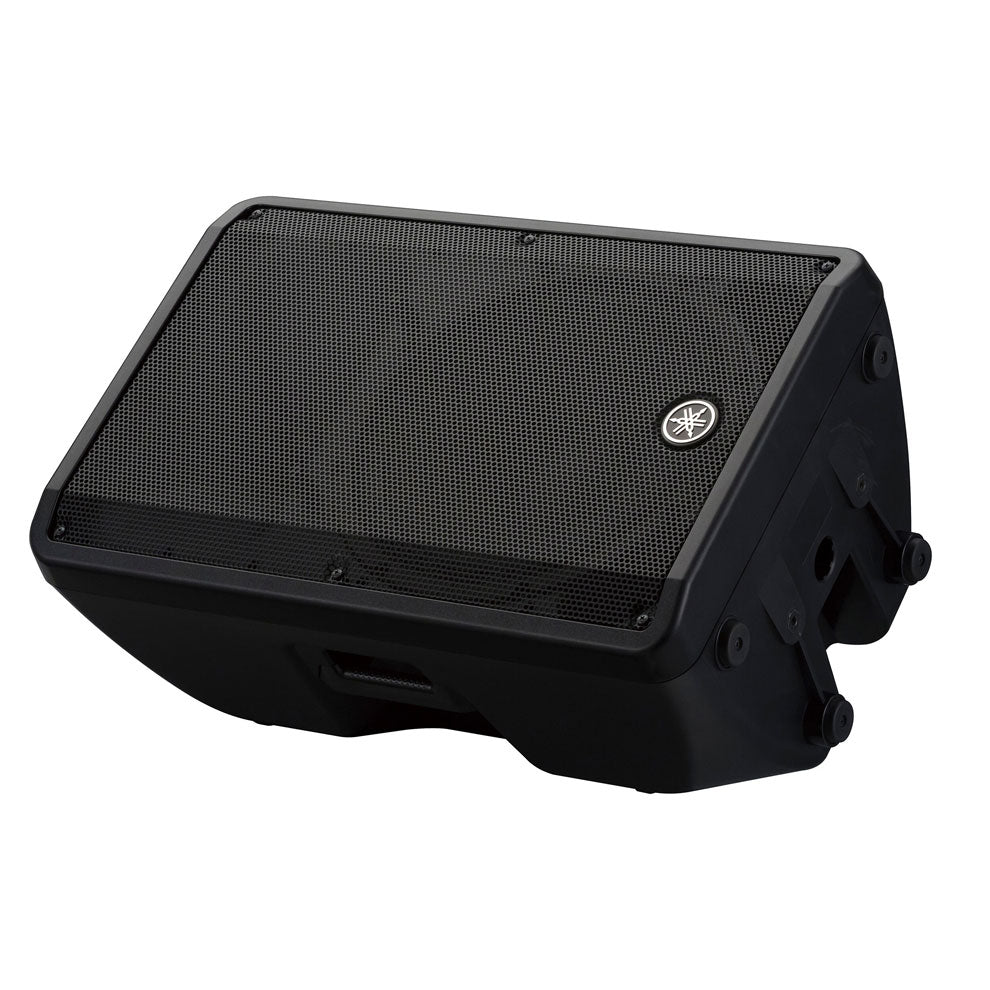

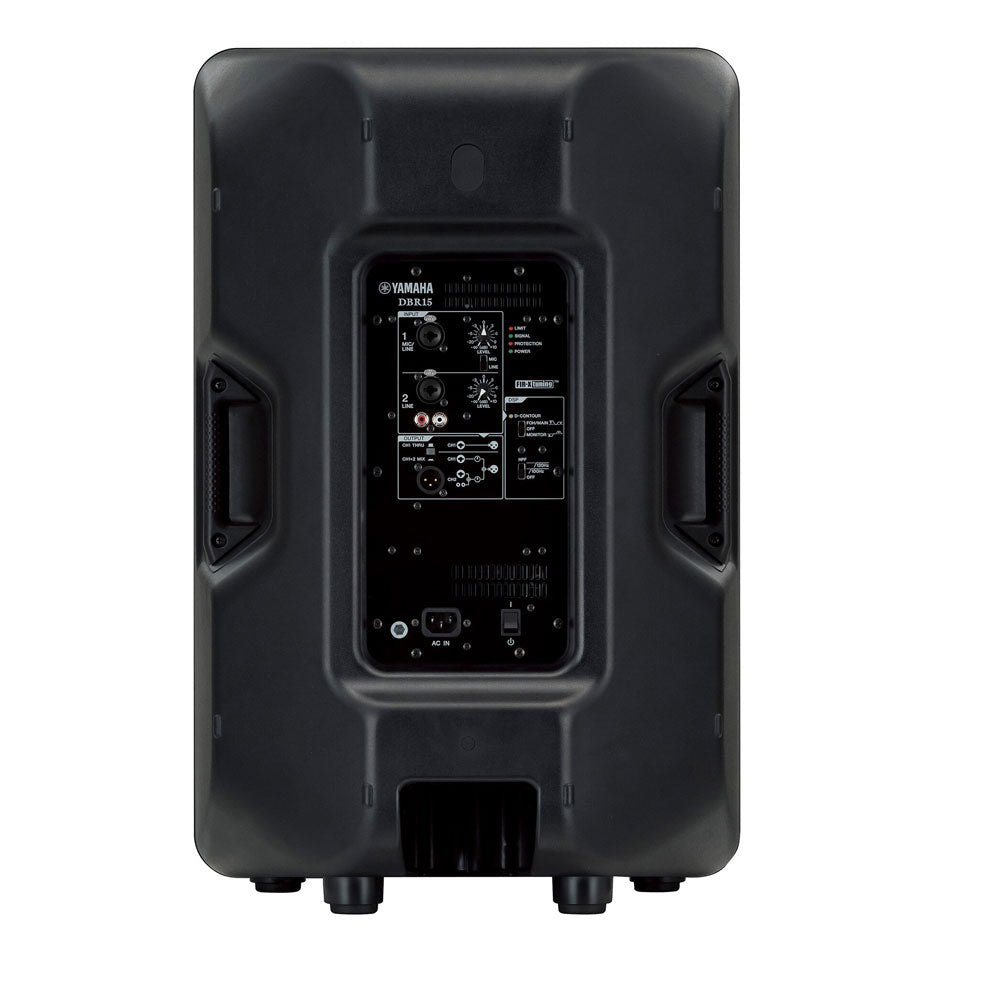

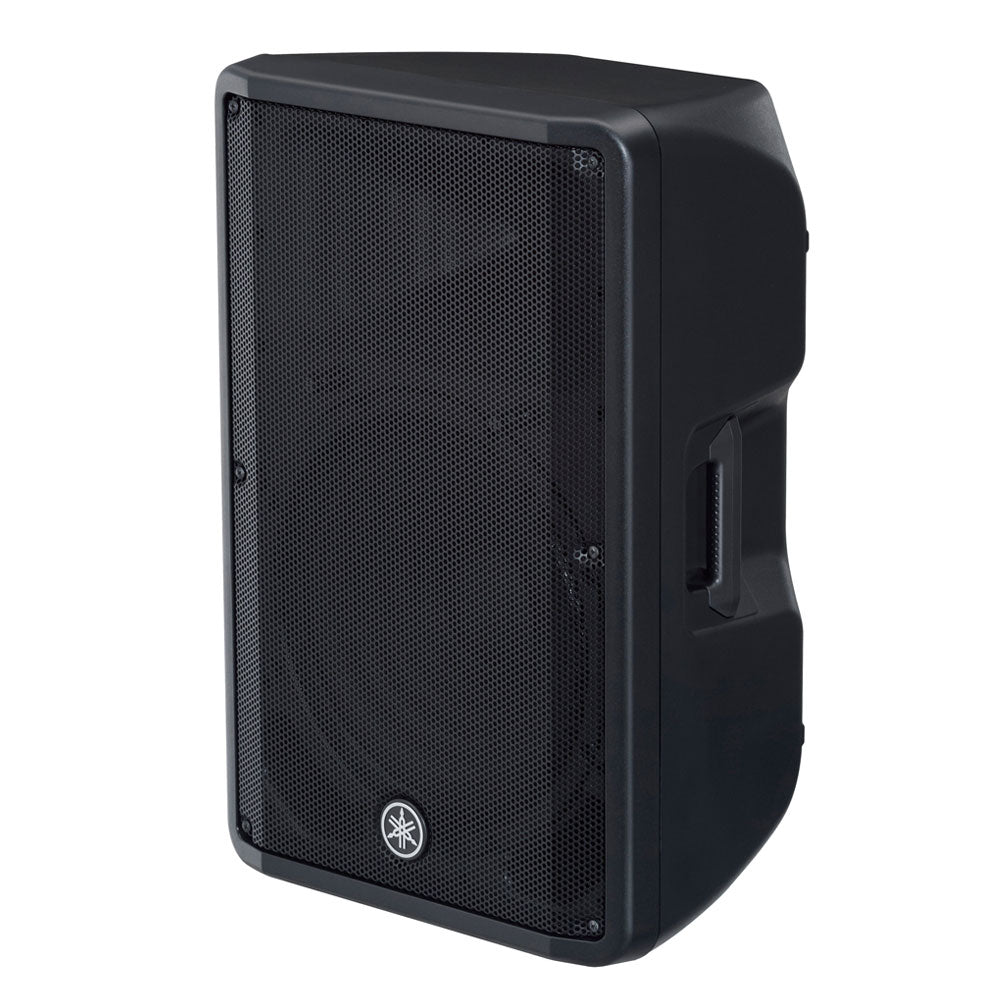

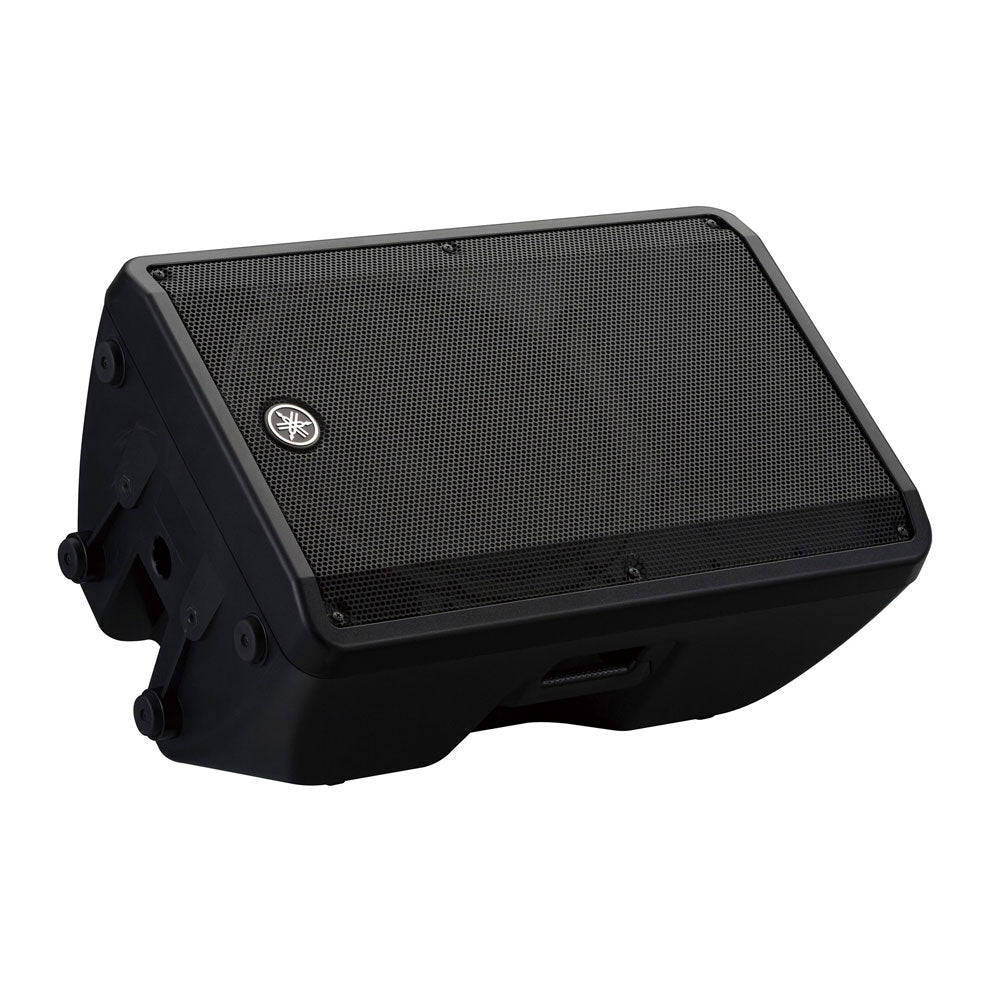

Yamaha DBR15 Powered Loudspeaker

Name: Yamaha DBR15 Powered Loudspeaker
Brand: YAMAHA
Price: 51000.00 INR
Availability: InStock

Brand: YAMAHA

Type: POWERED PA SPEAKERS

Rs. 51,000.00

Rs. 51,000.00 ~~Rs. 70,000.00~~

Tax included. Shipping calculated at checkout.

Yamaha DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.
