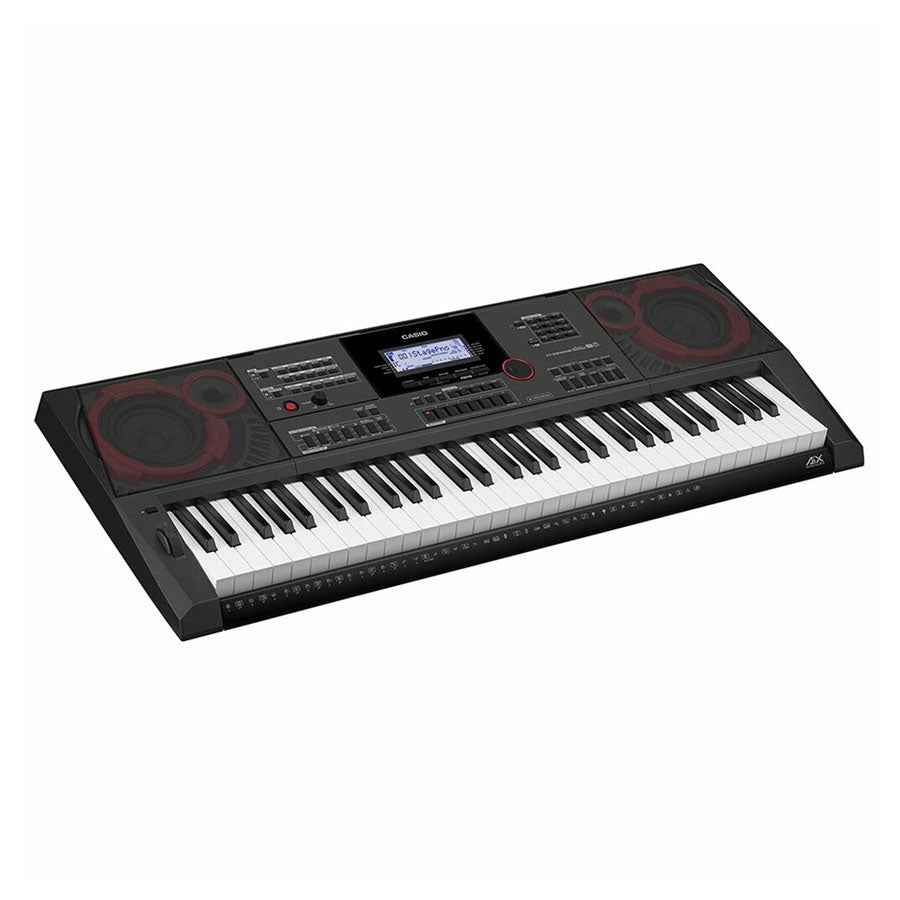

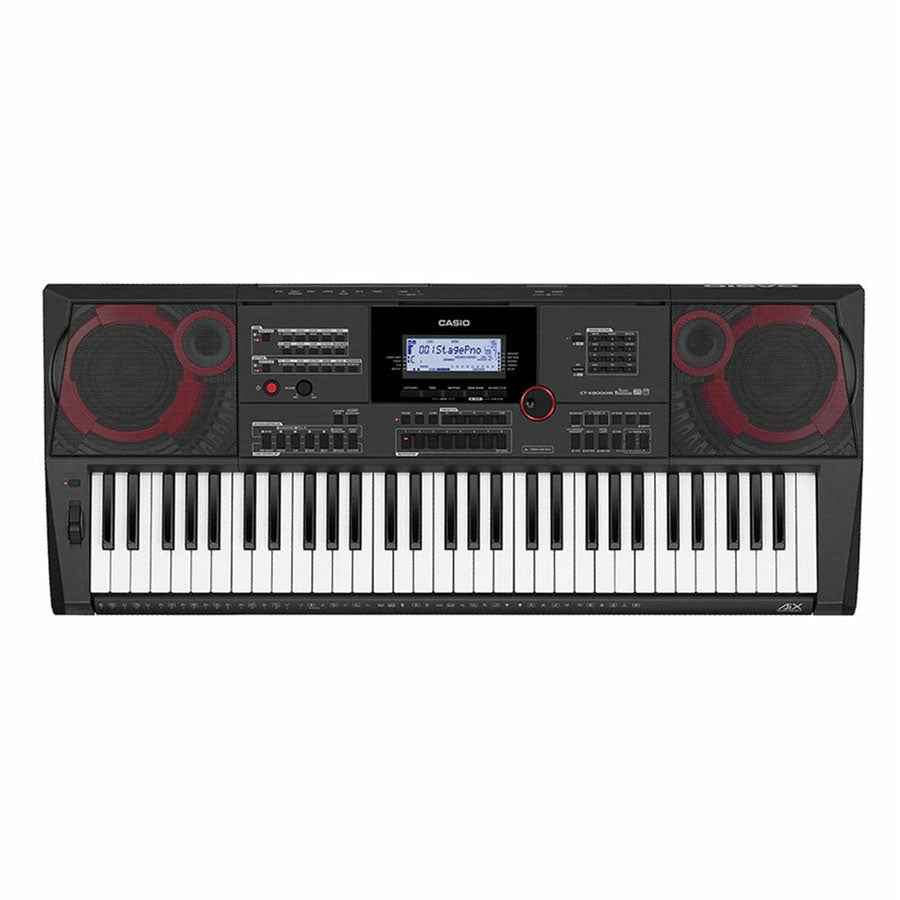

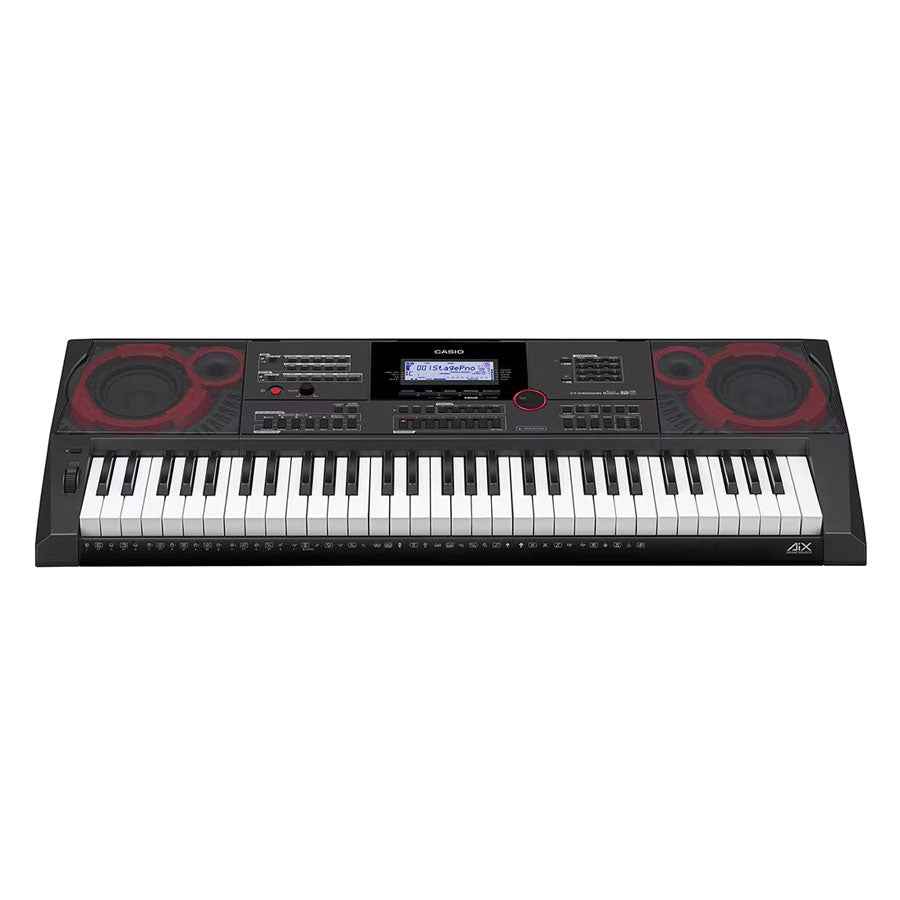

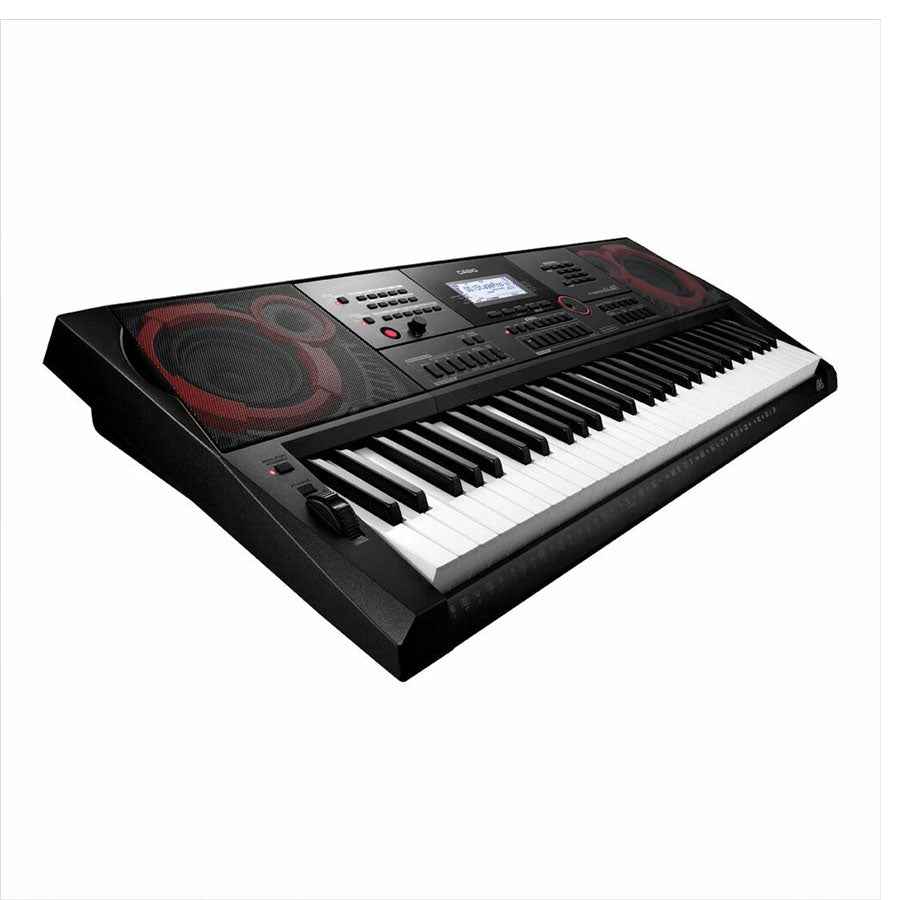

Casio CT-X9000IN Keyboard features a 15W + 15W high-output amp and bass reflex speakers, demonstrating the full potential of the AiX Sound Source.

• 61 keys with Touch Response, 64 Polyphony
• 800 Tones and 235 Rhythms
• 15WX15W

Keyboard

• 61 standard size keys
• Touch Response: Sensitivity 3 types, Off

Maximum Polyphony: 64 notes (32 for certain tones)

Tones

• Preset Tones: 800
• User Tones: 100
• Other: Layer, split (configurable split point, lower point, chord point settings)

System Effects

• Reverb: 32 types, Off
• Chorus: 16 types, Tones
• Delay: 20 types, Tones
• DSP: 100 types (Can be applied to user tones using DSP editing.), DSP tones

Master Effects

• Equalizer (10 presets)
• 4-band User Equalizer

External Input Effects: Center cancel (vocal cut) for input from the Audio In jack

Metronome

• Beat: 0 (accented tone off), 1 to 16
• Tempo: Tempo value: 20 to 255

Demo Songs: 3

Song Bank

• Built-in Songs: 30
• User-recorded Songs: 10
• USB Memory Songs: Playback of standard MIDI files (SMF format 0/1), CASIO MIDI files (CMF format) on a USB flash drive is supported.

USB Audio Playback

• Playback of audio files on a USB flash drive is supported.
• Supported File Formats: WAV format, 44.1 kHz 16 bit
• Other Functions: Center Cancel (Vocal Cut)

Auto Accompaniment

• Built-in Rhythms: 250
• User Rhythms: 100
• One Touch Presets 235

Music Presets: 310 (With chord progressions)

Phrase Pads

• Number of Pads: 4 User
• Phrases: 100 (4 phrases x 25 pads)
• Editing Mode: Copy, delete, phrase editing

Mixer function

• Affected Parts: Sound source parts, microphone input part
• Parameters: Part on/off, volume, pan, reverb send, chorus send, delay send

Registration: Maximum 128 setups (8 setups x 16 banks), registration sequence

Tone Editing

• Preset tone editing, DSP editing
• Memory for storage of edited tones (up to 100)

Rhythm Editing

• New rhythm creation, rhythm editing
• Memory for storage of created/edited rhythms (up to 100)

MIDI Recorder

• Real-time recording, playback
• Keyboard Performance Recording: 10 songs, 17 tracks (1 system track, 16 solo tracks)
• Memory Capacity: Approximately 40,000 notes (per song)
• Editing Mode: Song editing, track editing, event editing, step input
• Other Functions: Overdubbing, punch-in recording

Pedals: Sustain, sostenuto, soft, rhythm/song, expression

Controllers: Pitch bend wheel, SUSTAIN button, PORTAMENTO button, MODULATION/ ASSIGNABLE button

Other Functions

• Transpose: ±1 octaves (-12 to 0 to +12 semitones)
• Octave Shift: Upper 1/Upper 2/Lower 1/Lower 2, ±3 octaves
• Tuning: A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz)
• Part coarse tune: For each keyboard part, ±2 octaves (-24 to 0 to +24 semitones)
• Part fine tune: For each keyboard part, ±99 cents
• Scales: 17 preset scales, scale fine tuning
• Auto Harmonize: 12 types
• Arpeggiator: 150 types

MIDI: 16ch multi-timbre received, GM Level 1 standard

Inputs/Outputs

• USB Flash Drive Port: Type A
• USB Port: Type B
• Pedal 1 Jack: Standard jack
• Pedal 2, Expression Jack: Standard jack
• Headphones Jack: Stereo standard jack
• Audio Input Jack: Stereo mini jack/Input impedance 9 kΩ, Input sensitivity 200 mV
• Line Out Jack: Standard jacks x 2/Output impedance 2.3 kΩ, Output voltage 1.9 V (RMS) MAX
• Microphone Input Jack: Standard jack (Connect a dynamic microphone.)/ Input impedance 3 kΩ, Input sensitivity 10 mV

Power Jack: DC 24V

Speakers: 10cm x 2 (Output: 15W + 15W)

Power Consumption: 15 W

Dimensions: W 94.8 x D 38.4 x H 11.6 cm
