A high-grade model capable of anything from creating advance musical works to street performances
- 61 keys with Touch Response, 64 Polyphony
- 800 Tones and 235 Rhythms
- 6W?6W
Keyboard: 61 standard-size keys
Touch Response: 3 sensitivity types, Off
Maximum Polyphony: 64 notes (32 for certain tones)
Preset Tones: 800
User Tones: 100
Functions: Layer, Split (configurable split point, lower point, chord point settings)
Reverb: 24 types, Off
Chorus: 12 types, Tones
Delay: 15 types, Tones
DSP: 100 types (applicable to user tones with DSP editing), DSP tones
Master Effects: Equalizer (10 presets)
External Input Effects: Center Cancel (Vocal Cut) for Audio In input
Metronome Beat: 0 (accent off), 1–16
Metronome Tempo: 20–255
Demo Songs: 3
Song Bank:
Built-in Songs: 30
User-recorded Songs: 10
USB Songs: Playback of SMF (Format 0/1) and CASIO MIDI files (CMF)
USB Audio Playback: WAV files (44.1 kHz, 16-bit)
Additional Function: Center Cancel (Vocal Cut)
Auto Accompaniment:
Built-in Rhythms: 250
User Rhythms: 50
One Touch Presets: 235
Music Presets: 310 (with chord progressions)
Phrase Pads:
Number of Pads: 4
User Phrases: 100 (4 phrases × 25 pads)
Editing: Copy, Delete, Phrase Editing
Mixer Function:
Affected Parts: Sound source parts, Microphone input
Parameters: Part on/off, Volume, Pan, Reverb send, Chorus send, Delay send
Registration: 128 setups (8 setups × 16 banks), Registration sequence
Tone Editing: Preset tone editing, DSP editing
Tone Memory: Up to 100 edited tones
Rhythm Editing: Rhythm creation and editing
Rhythm Memory: Up to 50 rhythms
MIDI Recorder:
Real-time recording and playback
10 songs, 17 tracks (1 system + 16 solo)
Memory: Approx. 40,000 notes per song
Editing: Song, Track, Event editing, Step input
Functions: Overdubbing, Punch-in recording
Pedals: Sustain, Sostenuto, Soft, Rhythm/Song, Expression
Controllers: Pitch bend wheel, Sustain button, Portamento button
Transpose: ±1 octave (-12 to +12 semitones)
Octave Shift: Upper 1/Upper 2/Lower 1/Lower 2 (±3 octaves)
Tuning: A4 = 415.5 – 465.9 Hz (Default 440.0 Hz)
Part Coarse Tune: ±2 octaves (-24 to +24 semitones)
Part Fine Tune: ±99 cents
Scales: 17 preset scales with fine tuning
Auto Harmonize: 12 types
Arpeggiator: 150 types
MIDI: 16-channel multi-timbre receive, GM Level 1 standard
USB Flash Drive Port: Type A
USB Port: Type B
Pedal 1 Jack: Standard jack
Pedal 2 / Expression Jack: Standard jack
Headphones Jack: Stereo standard jack
Audio Input Jack: Stereo mini jack (Input impedance 9 kΩ, Sensitivity 200 mV)
Power Jack: DC 12V
Power Supply:
AC Adapter: AD-A12150LW
Batteries: 6 D-size alkaline batteries
Battery Life: Approx. 10 hours
Auto Power Off: 30 minutes (can be disabled)

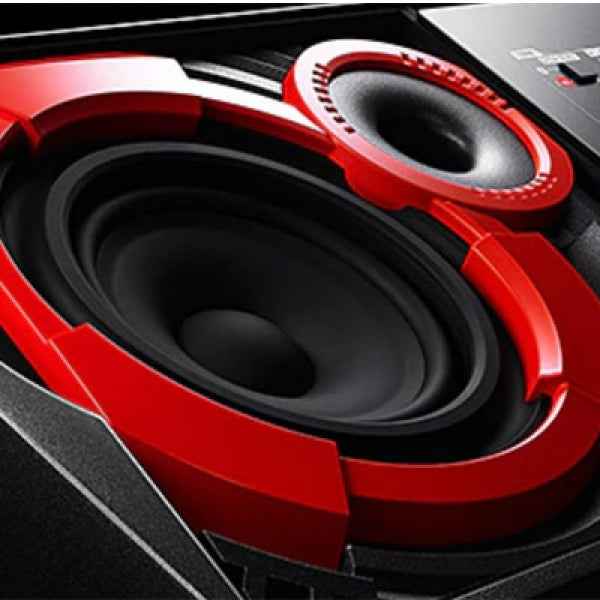

Speakers: 10 cm × 2 (Output: 6W + 6W)
Power Consumption: 8 W
Dimensions: 94.8 × 38.4 × 11.6 cm (W × D × H)
