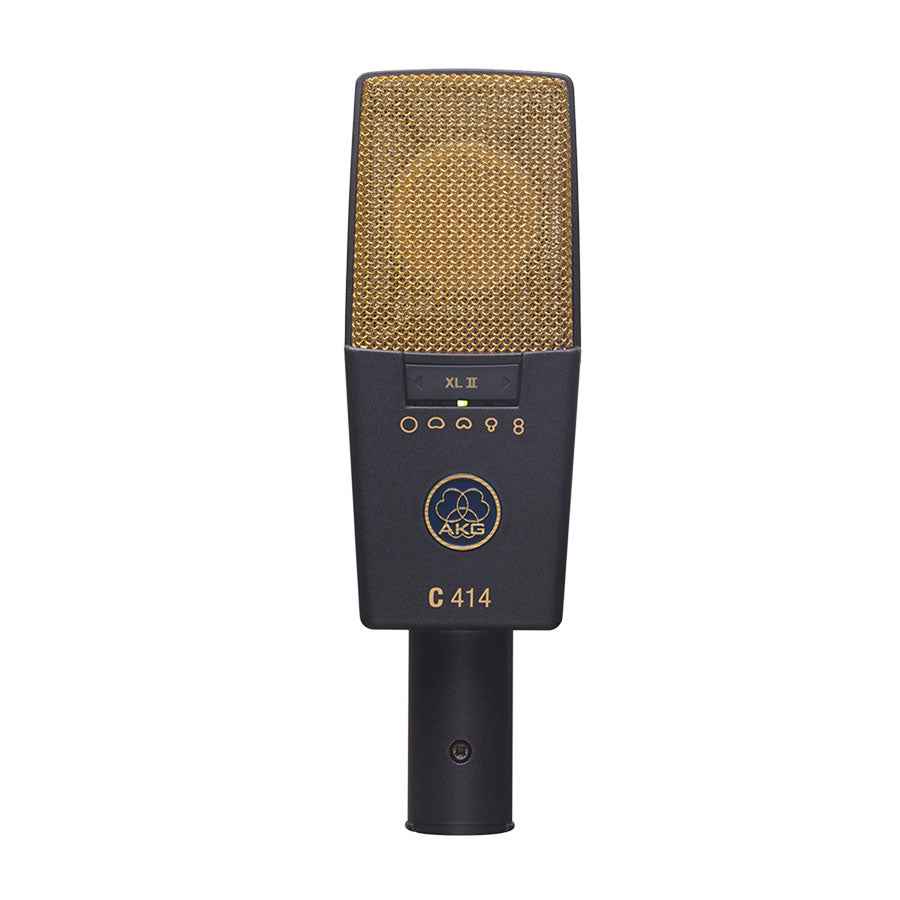

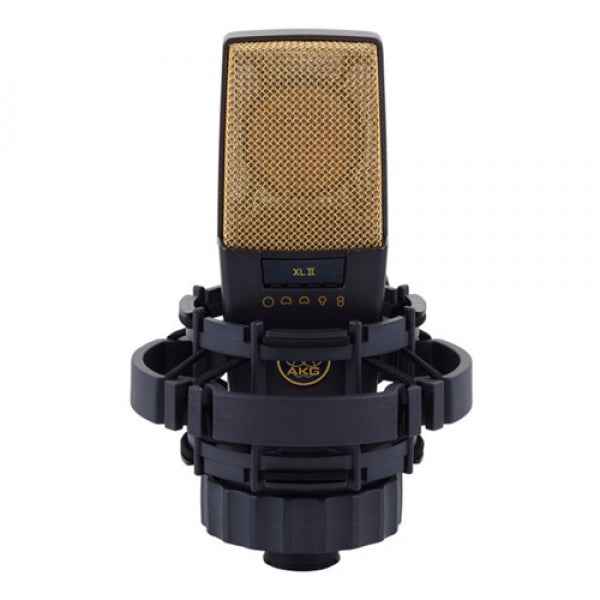

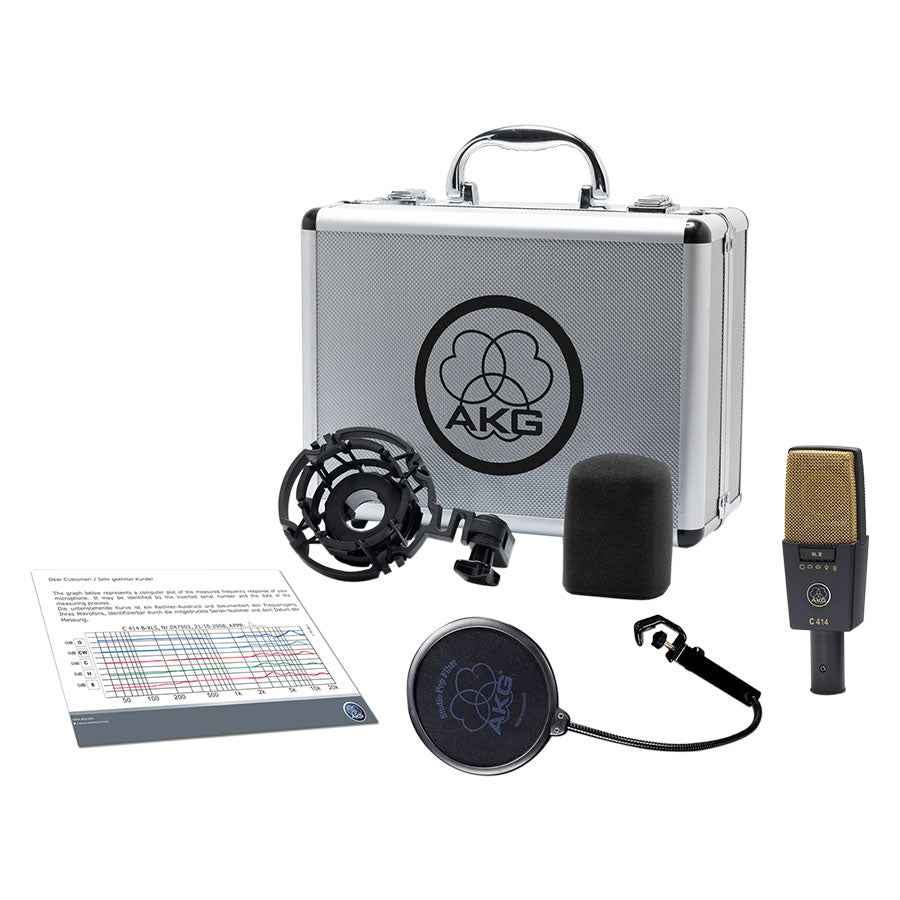

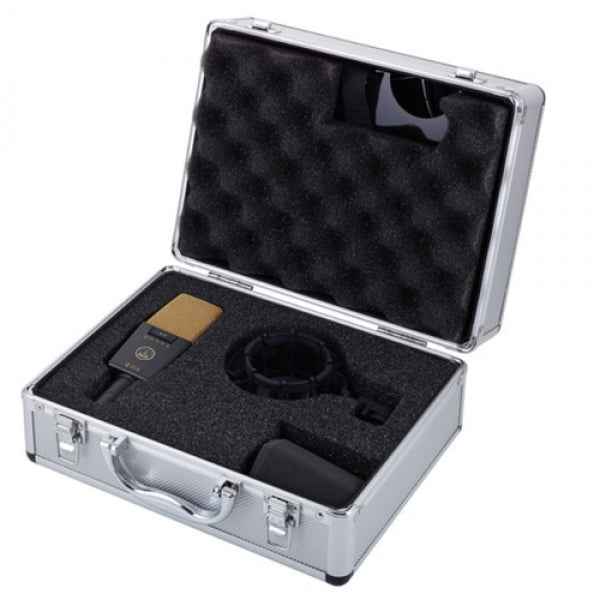

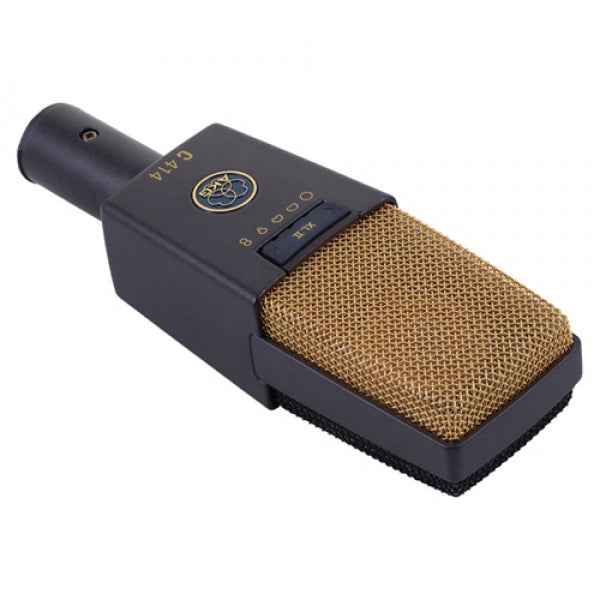

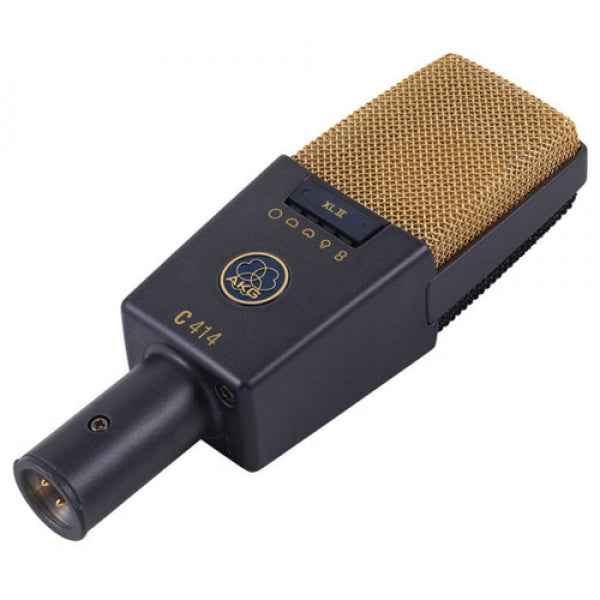

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

Sonic character of the famous AKG C12

Delivers astounding sound quality for lead vocals and solo instruments

Nine selectable polar patterns

For the perfect setting for every application

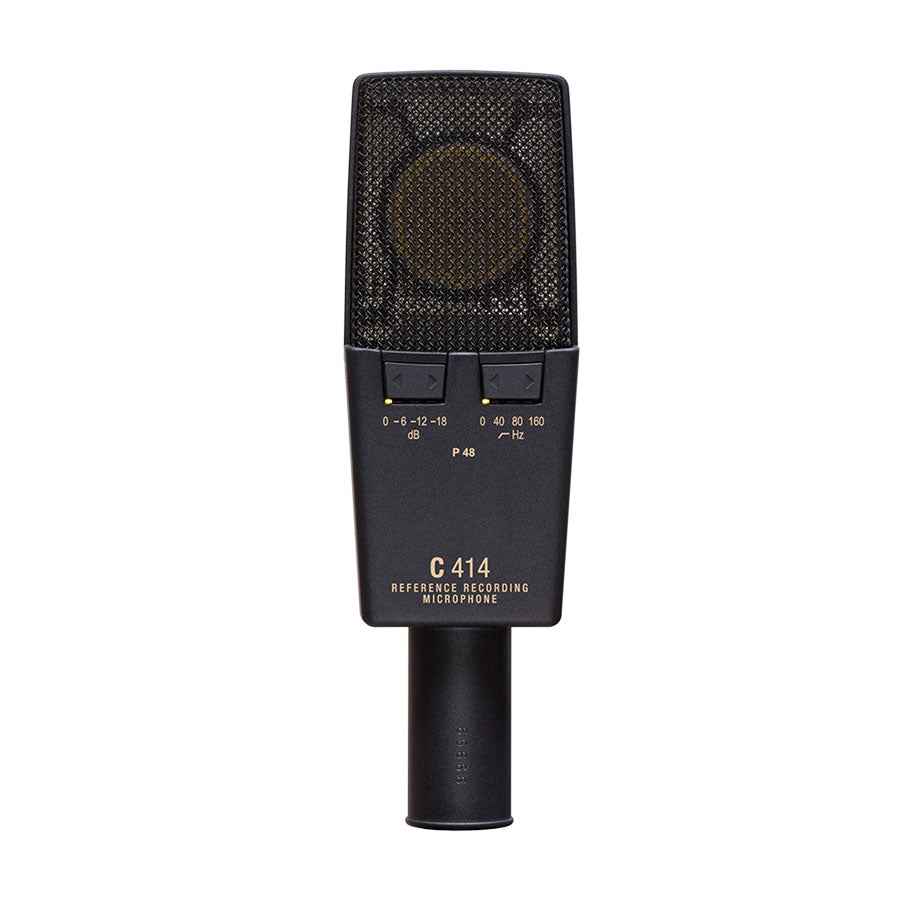

Three attenuation levels (-6/-12/-18dB)

For close-up recording or high-output sources of up to 158dB SPL

Three switchable different bass-cut filters

To reduce wind noise, stage vibration or proximity effect

Overload warning with audio peak hold LED

To detect shortest audio peaks

General

• Audio frequency bandwidth: 20 - 20000 Hz
• Equivalent noise level: 6 dB-A
• Sensitivity: 23 mV/Pa
• Signal to Noise: 88 dB-A
• Preattenuation Pad: -6; -12; -18 dB
• Bass cut filter: 160; 80; 40 Hz
• Electrical impedance: 200 Ohms
• Recommended load impedance: 2200 Ohms
• Polar Patterns: Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, and Figure of Eight

Powering Interface

• Voltage: 44 to 52 V
• Current: 4.5 mA

Design

• Finish: dark gray/gold

Audio Output

• Type: Balanced XLR
• Gende: rMale
• Contacts: 3-pin

Application

• Pro Studio: Yes

Instrument

• Vocals: Yes
• Piano / Strings: Yes
• Horns / Woodwinds: Yes
